PRODUCTION LINE FOR LARGE-FORMAT PARTS
ZELUS
PRINZING PFEIFFER
zelus

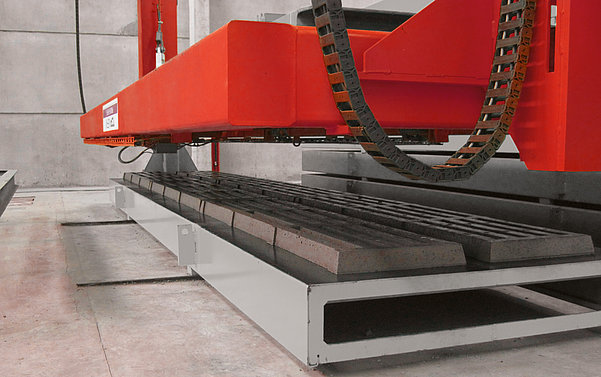

AUTOMATIC PRODUCTION LINE FOR LARGE-FORMAT CONCRETE PARTS.
The ZELUS is a production line with automatic mould and product handling. Depending on the design, production with a wet- or dry-cast process is possible.
It is designed for fully automatic filling of large-format moulds for a wide range of product geometries, with precise concrete dosing.
| ZELUS | 400/25 | 500/20 | 600/30 |
| Production Area (mm) | 4,100 x 1,300 | 4,700 x 3,000 | 6,000 x 3,000 |
| max. height (mm) | 250 | 180 | 300 |
| max. product weight (kg) | 1,000 | 4,000 | 10,000 |
| Can be extended with handling systems | yes | ||
| SCC version available | yes | ||
HIGHLIGHTS
- Fully automatic production line for processing wet or dry cast
- Fully automatic filling of large-format moulds for a wide range of geometries
- Precise concrete dosing into the moulds
- Automatic mould storage or pallet storage
- Intuitive machine control
Machines and plants for pipes, manholes and precast concrete elements
COMPLETE SYSTEMS
Please discuss your requirements with us - we'll design the right solution for you.

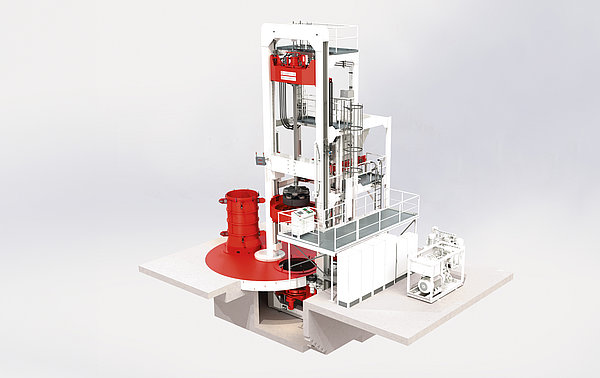

OTHER MACHINES FOR PRECAST CONCRETE ELEMENTS
